PRS-812RM Resistance Measurement Set
Part Number: PRS-812RM
Manufacturer: Prostat Corporation
Availability: 2 to 3 Weeks

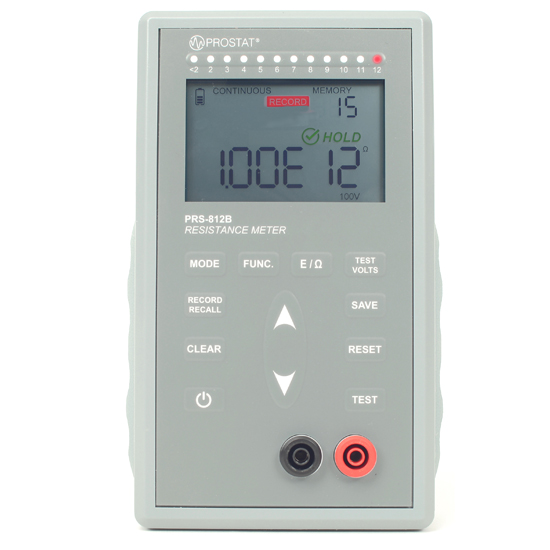

PRS-812 Resistance Meter Set

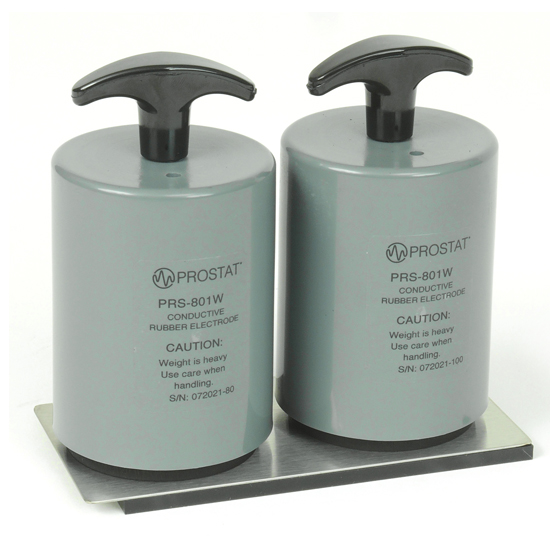

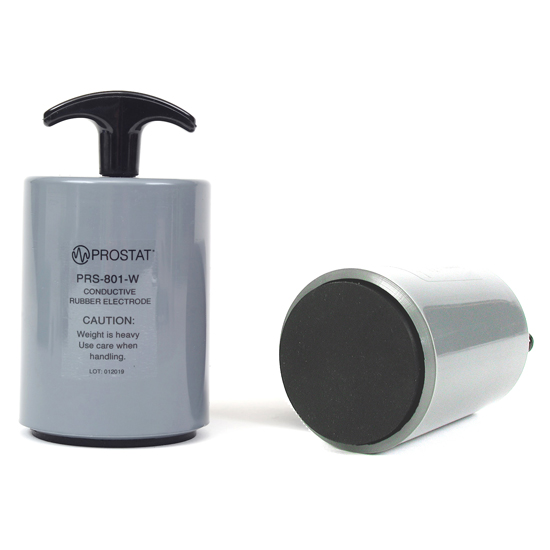

PRS-801-W Rubber Electrodes
- Measures resistance from < 0.1 to 1.0x1012 ohms with overall measurement accuracy of ±5%.
- Records and stores up to 80 measurements.
- Constant voltage
- Fully automatic, controls test voltage, resistance ranging and electrification period.
- Displays measurements in ohms, kilohms, megohms, gigohms and terohms, and in exponential format.
- Battery operated (2 x 9 Volts)

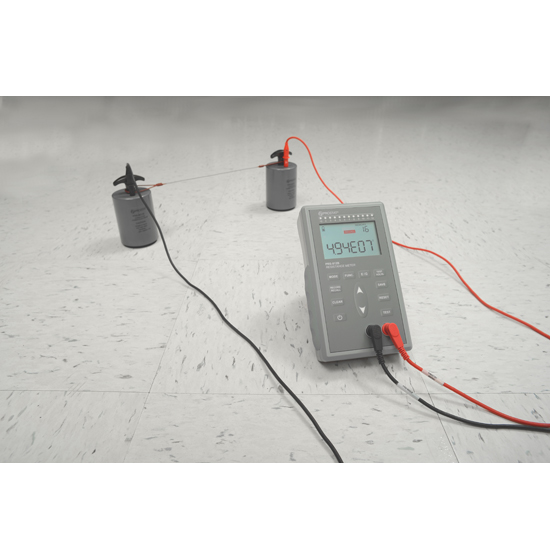

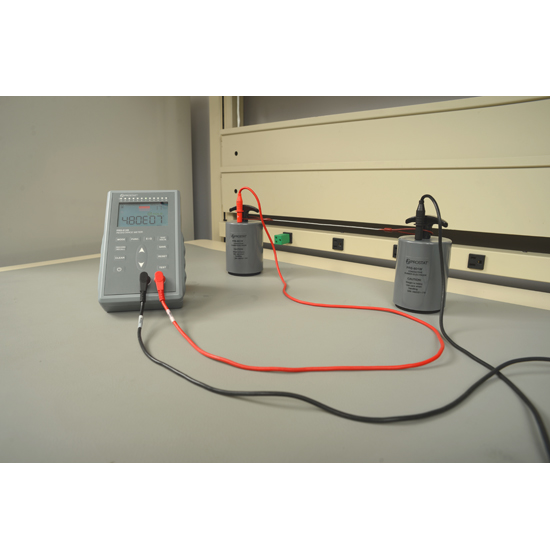

- Used in point to point and point to ground resistance testing.
- Provides repeatable measurements in accordance with ESD Association standards.
- Weighs 5 lbs. (2.27Kg) each ± 2 oz.
- Durometer hardness of 50-70, < 1K ohm resistance at 10V on metal test plate.
